Description

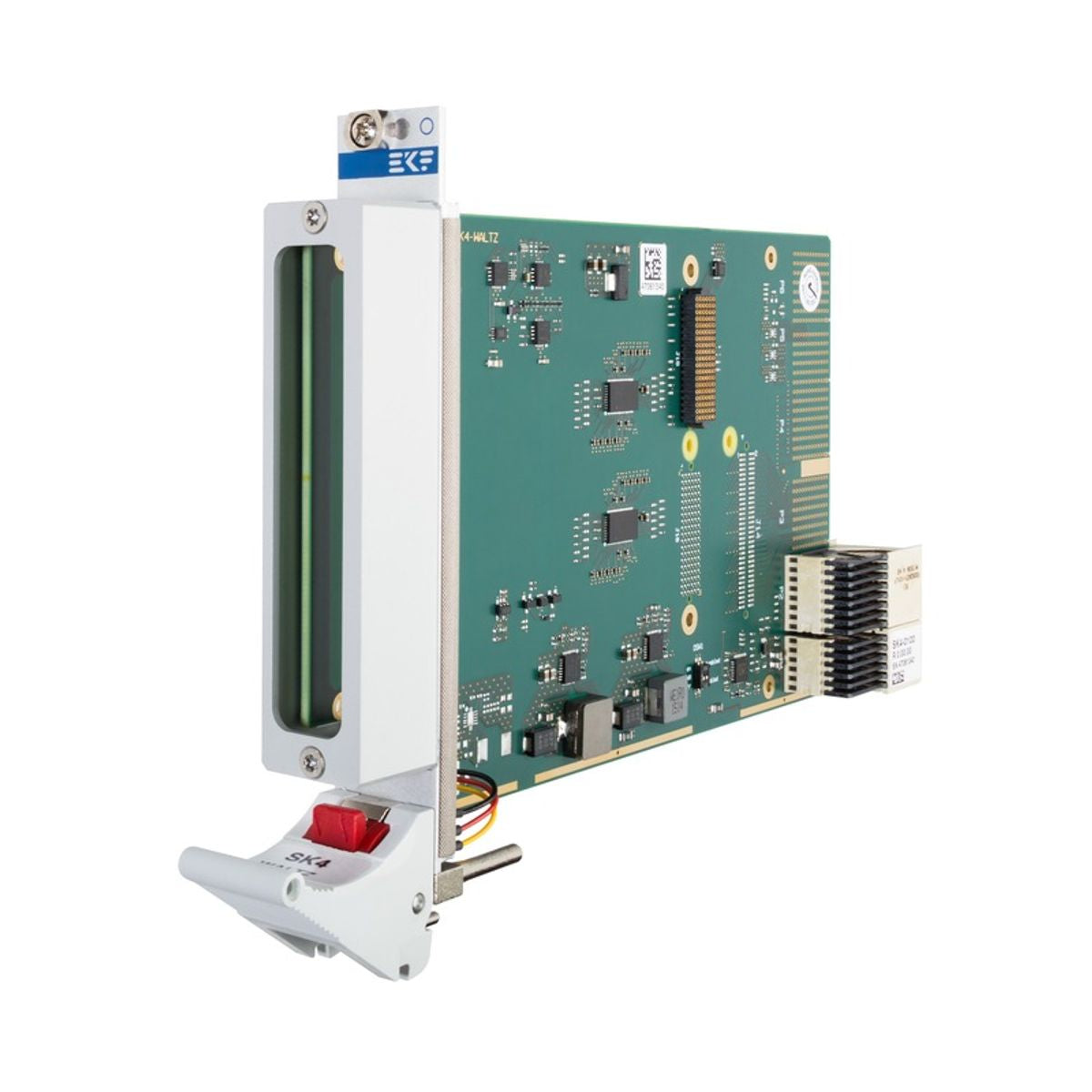

xSK4-WALTZ is a bidirectional 8-lane PCI Express® Gen3 redriver, for optimum high speed signal integrity, and should be installed into a fat pipe peripheral slot of a CompactPCI® Serial backplane.
Product Features
x- PICMG® CompactPCI® Serial standard (CPCI-S.0) peripheral slot card
- Single size Eurocard 3U 4HP 100x160mm
- CompactPCI® Serial backplane connectors P1 & P2 (fat pipe slot up to PCIe® x8)
- Optional backplane connectors P3, P4, P5 for rear I/O usage
- Suitable for 74x149mm2 or 74x139mm2 XMC modules according to VITA 42
- XMC module connector J15 (specified by VITA 42 as PCIe Gen1 interface)
- Option XMC 2.0 module connector J15 (VITA 61) recommended for PCIe Gen2
- 8 x PCI Express® lanes Gen1 (2.5GT/s as specified by VITA 42), Gen2 (5.0GT/s as specified by VITA 61) or Gen3 (8GT/s)
- 8-Lane bidirectional PCIe Gen3 redriver/repeater for optimum signal integrity
- PCI Express® Gen3 clock buffer for optimum signal integrity
Product Information
xItem/Part NumberSK4-WALTZ
Item DescriptionXMC Module Carrier PCI Express x 8
ArchitectureCPCI Serial and PMC/XMC
