Description

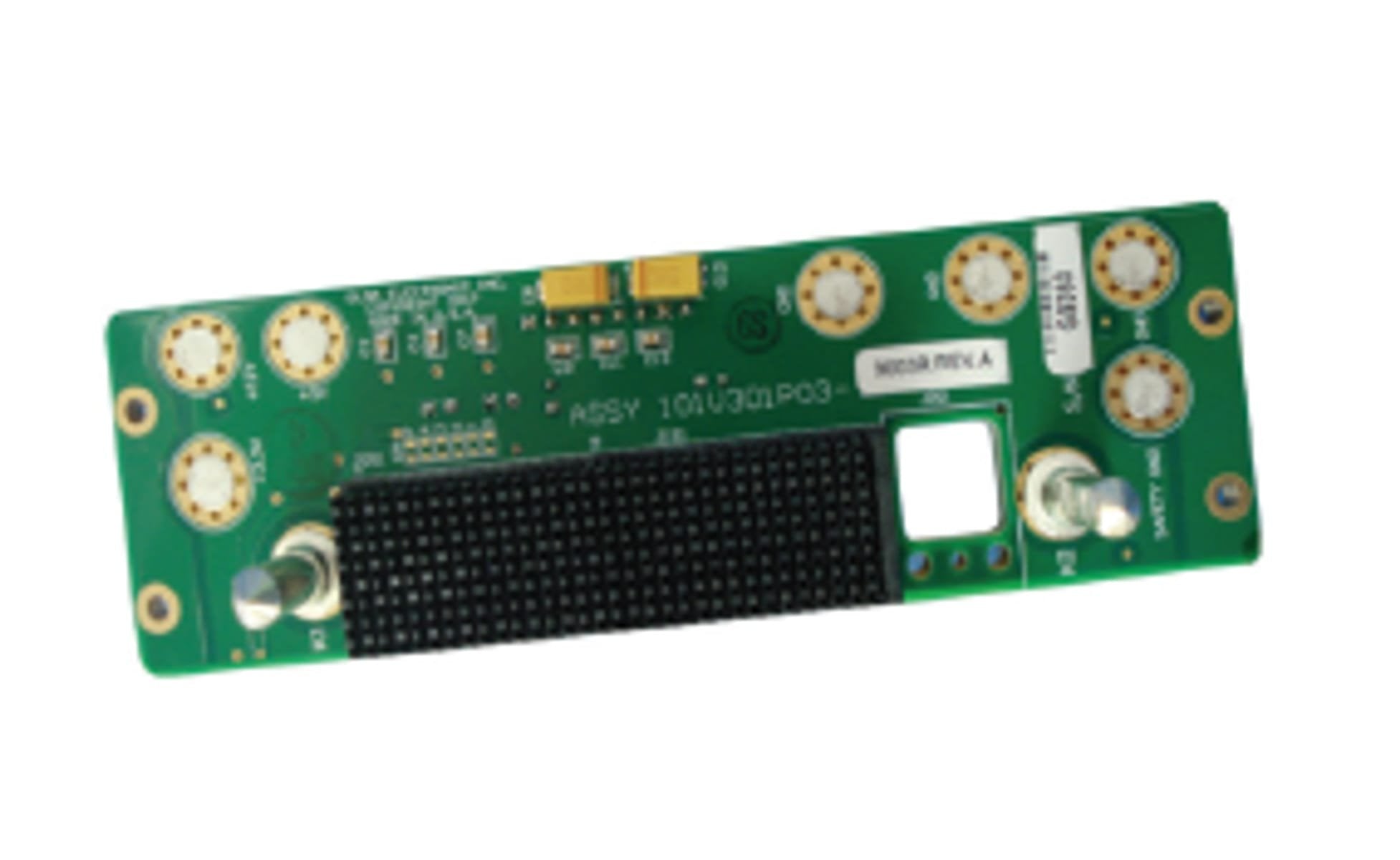

x3U 1-Slot OpenVPX Power & Ground, Aperture E, Supports VITA 66.4/67.3A/67.1 in J2B, Module TE 2226880-1, Pass through with VITA 66.4 ctr in J2B and RT2-R ruggedized VPX conn, w/o ROHS, Max data rate (Gbps) 3.125
Product Features
x- 3U 1-Slot OpenVPX Power & Ground
- Aperture E
- Pass through with VITA 66.4 ctr in J2B and RT2-R ruggedized VPX conn
- 3.125G, Max data rate (Gbps)
- Compliant to the latest VITA 46 / 65 specifications
- Power and ground only backplane for simple and lowcost development
- 3.3V, 5V, 12V, 3.3V_AUX, +12V_AUX, and -12V_AUX power circuits are all present
- P0-P6 pins are user-defined
- NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
- Compliant to the latest VITA 46 / 65 / 66 / 67 specifications
Product Information
xItem/Part Number101V301P03-9006
Item Description3U 1-Slot OpenVPX P&G, Aperture E, VITA 66.4/67.3A/67.1 in J2B, Module TE 2226880-1, 3.125G
ArchitectureVPX/OpenVPX
Slots1
Datasheets and Media
