3U 1-Slot OpenVPX P&G, Aperture J, VITA 67.3D , w/o ROHS, 10G
3U 1-Slot OpenVPX P&G, Aperture J, VITA 67.3D , w/o ROHS, 10G
3U 1-Slot OpenVPX P&G, Aperture J, VITA 67.3D , w/o ROHS, 10G
3U 1-Slot OpenVPX P&G, Aperture J, VITA 67.3D , w/o ROHS, 10G
BP OpenVPX Backplanes

3U 1-Slot OpenVPX P&G, Aperture J, VITA 67.3D , w/o ROHS, 10G

Item/Part Number: 101V301P05-9X12
Request Information
Description
Description
x

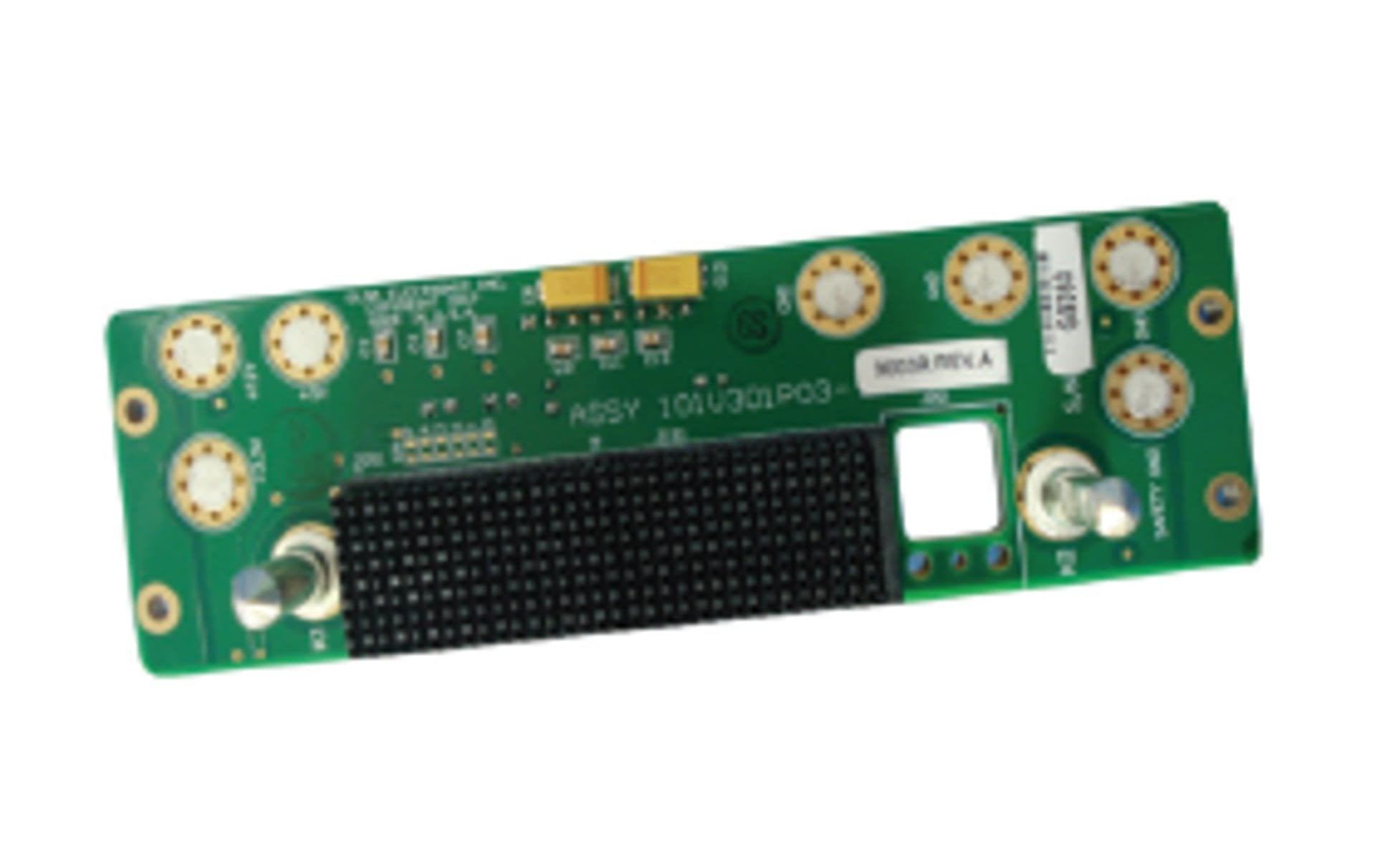

3U 1-Slot OpenVPX Power & Ground, Aperture J, Supports VITA 67.3D , Pass through, w/o ROHS, Max data rate (Gbps) 10

Product Features
Product Features
x
  • 3U 1-Slot OpenVPX Power & Ground
  • Aperture J
  • Pass through
  • 10G, Max data rate (Gbps)
  • Compliant to the latest VITA 46 / 65 specifications
  • Power and ground only backplane for simple and lowcost development
  • 3.3V, 5V, 12V, 3.3V_AUX, +12V_AUX, and -12V_AUX power circuits are all present
  • P0-P6 pins are user-defined
  • NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
  • Compliant to the latest VITA 46 / 65 / 66 / 67 specifications
Product Information
Product Information
x
Item/Part Number101V301P05-9X12
Item Description3U 1-Slot OpenVPX P&G, Aperture J, VITA 67.3D , w/o ROHS, 10G
ArchitectureVPX/OpenVPX
Slots1
Datasheets and Media
Datasheets and Media
x

Datasheet:

Datasheet 3U VPX power ground backplanes with aperatures

Technical Guide:

OpenVPX Backplanes Technical Reference Guide

Other:

InteractiveChart 3U Power and Ground Backplane en
