Description

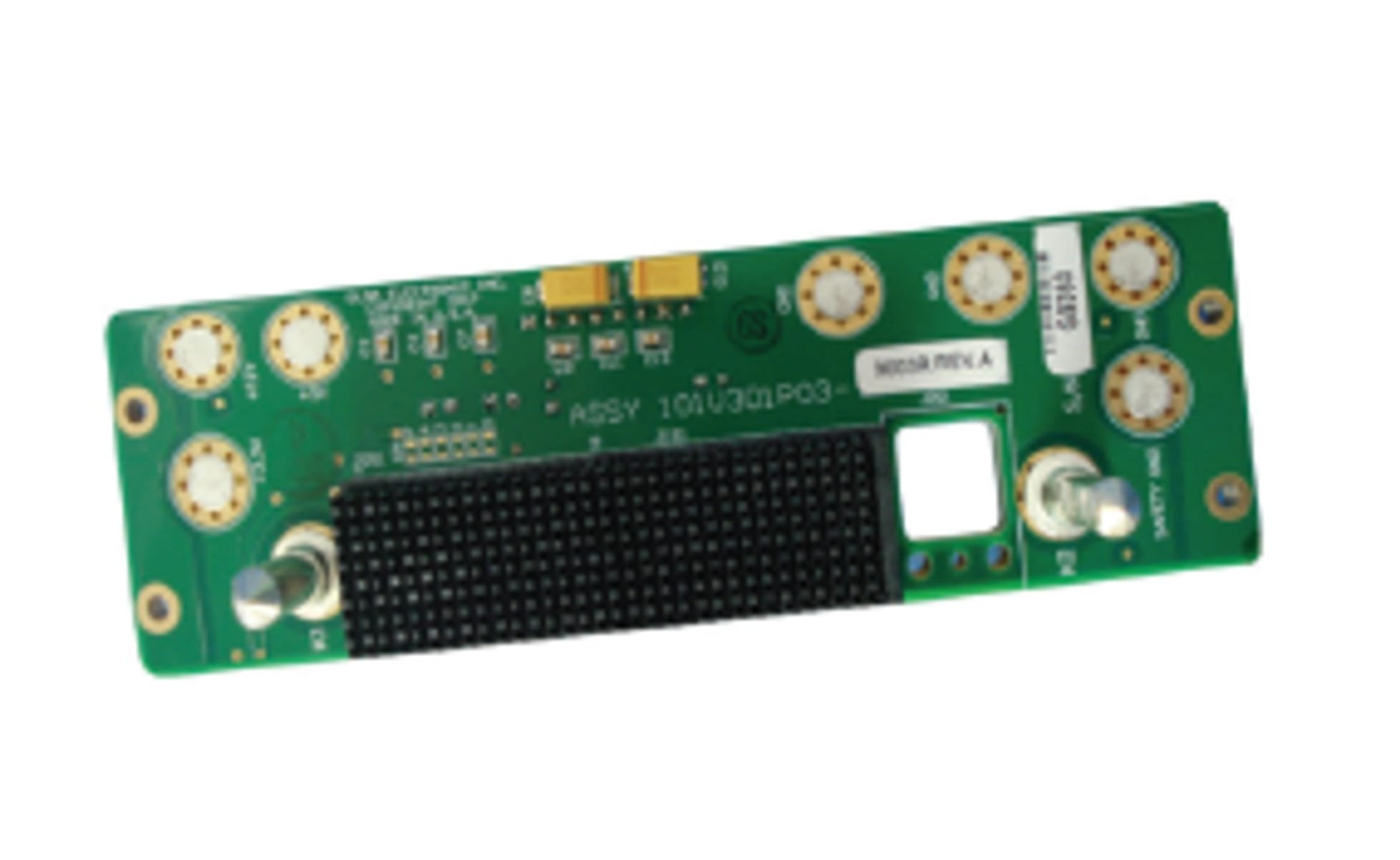

xThis 3U 1-slot OpenVPX backplane is designed for high-speed data throughput applications conforming to the VITA 46 and VITA 65 standards. Supporting 10G Ethernet interfaces on J2AB, it provides a high-performance platform for signal integrity, low latency, and rugged system configurations. The precision-milled design and controlled impedance routing ensure optimal reliability in embedded computing and defense-grade environments.
Product Features
x- 3U 1-Slot OpenVPX Power & Ground
- Aperture E
- Pass through
- 10G, Max data rate (Gbps)
- Compliant to the latest VITA 46 / 65 specifications
- Power and ground only backplane for simple and lowcost development
- 3.3V, 5V, 12V, 3.3V_AUX, +12V_AUX, and -12V_AUX power circuits are all present
- P0-P6 pins are user-defined
- NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
- Compliant to the latest VITA 46 / 65 / 66 / 67 specifications
Product Information
xItem/Part Number101V301P02-9X12
Item Description3U 1-Slot OpenVPX P&G, Aperture E, VITA 66.4/67.3A/67.1 in J2A+B, w/o ROHS, 10G
ArchitectureVPX/OpenVPX
Slots1
