Description

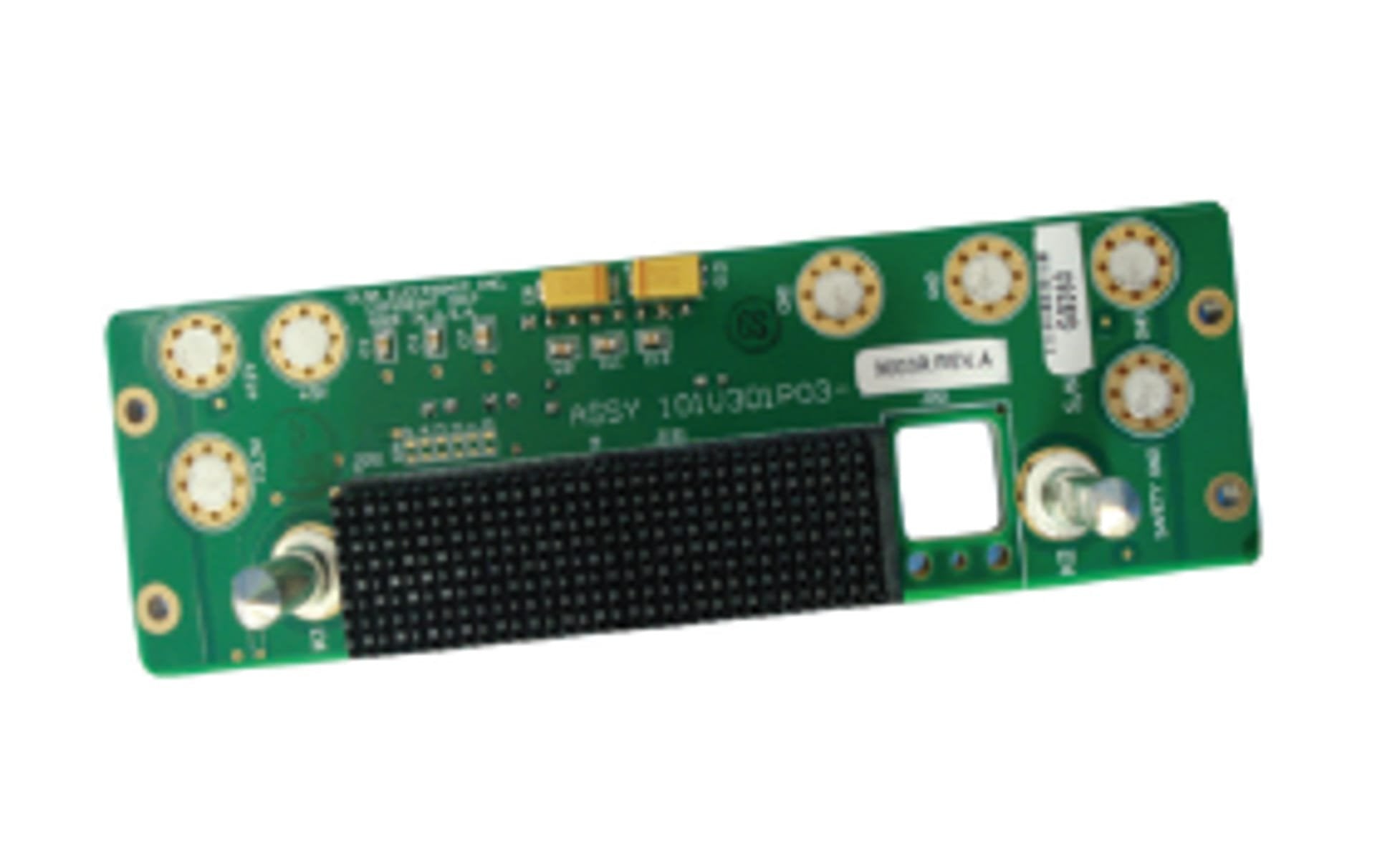

xOptimized for moderate bandwidth systems, this 3U 1-slot OpenVPX backplane supports 3.125G serial connections through J2B, maintaining compliance with VITA 46 and 65 standards. It is designed for embedded and rugged computing platforms requiring stable signal routing, efficient power distribution, and robust mechanical performance. Its high-quality PCB design guarantees consistent electrical characteristics across temperature and vibration extremes.
Product Features
x- 3U 1-Slot OpenVPX Power & Ground
- Aperture E
- Pass through
- 3.125G, Max data rate (Gbps)
- Compliant to the latest VITA 46 / 65 specifications
- Power and ground only backplane for simple and lowcost development
- 3.3V, 5V, 12V, 3.3V_AUX, +12V_AUX, and -12V_AUX power circuits are all present
- P0-P6 pins are user-defined
- NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
- Compliant to the latest VITA 46 / 65 / 66 / 67 specifications
Product Information
xItem/Part Number101V301P03-9003
Item Description3U 1-Slot OpenVPX P&G, Aperture E, VITA 66.4/67.3A/67.1 in J2B, w/o ROHS, 3.125G
ArchitectureVPX/OpenVPX
Slots1
