Description
xThis 3U Open VPX backplane offers one VITA 46 Power and Ground slot and one VITA 62 power supply slot to support the development and deployment of systems requiring a VITA 62 power supply. The rear power studs can be used to connect to an adjacent backplane to feed it power. Discover OpenVPX architecture: https://www.elma.com/en/capabilities/openvpx
Product Features
x- Power and Ground Slot: Compliant to the latest VITA 46 / 65 specifications | For simple and low-cost development | 3.3V, 5V, and 12V power | P0 - P2 pins are user-defined | Backplanes have the utility plane implemented in P0 and the System Management bus routed to 2 headers | NVMRO, SYSRESET#, SYSCON# and maskable reset are routed to 3 headers
- Power Interface Slot: Complies with VITA 62.0 and VITA 62.2 (allowing separators/insulators to be installed on demand) | PSU slot outputs and VDC inputs via #8-32 power studs | Header for various control signals like voltage sense, current share, IPMB interface, inhibit, enable and fail, etc | Selectable geographical addressing via a DIP switch | 5HP width for a single power supply | Can support insulators / fins for 270VDC operation in high altitude / harsh environments (custom assembly)
- Backplane is designed for 25 Gbps data rates and supports 100GBASE-KR4
Product Information
xItem/Part Number101VPX302-xxxx

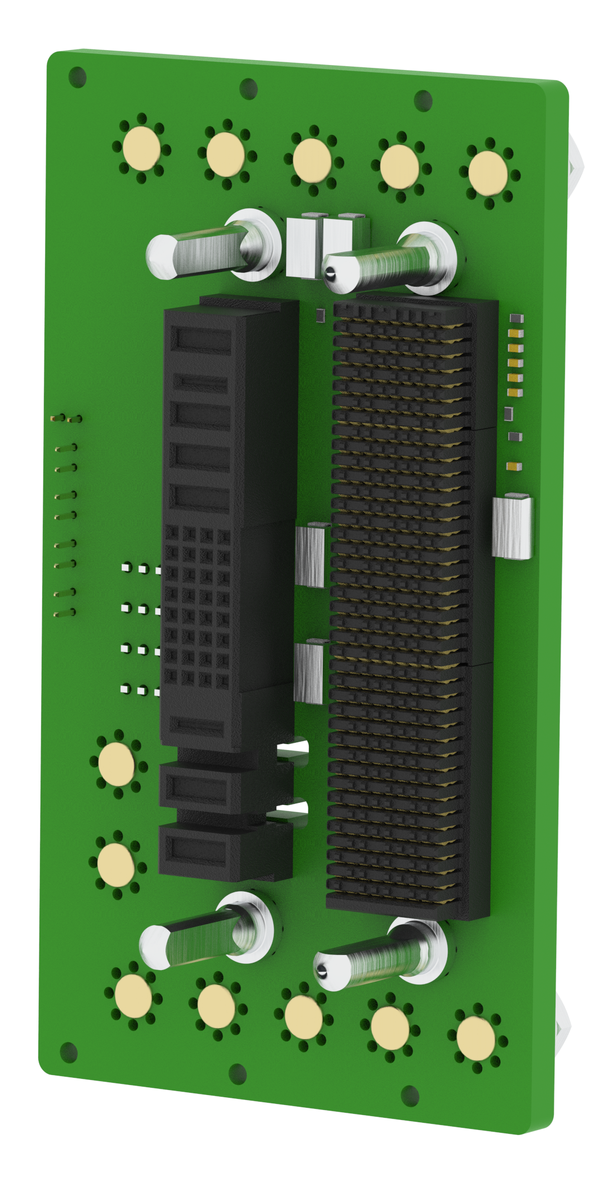

Item Description3U OpenVPX 2-Slot Backplane with 1 VPX Power and Ground plus 1 VITA 62 power supply slot
ArchitectureVPX/OpenVPX
Slots2
