Description

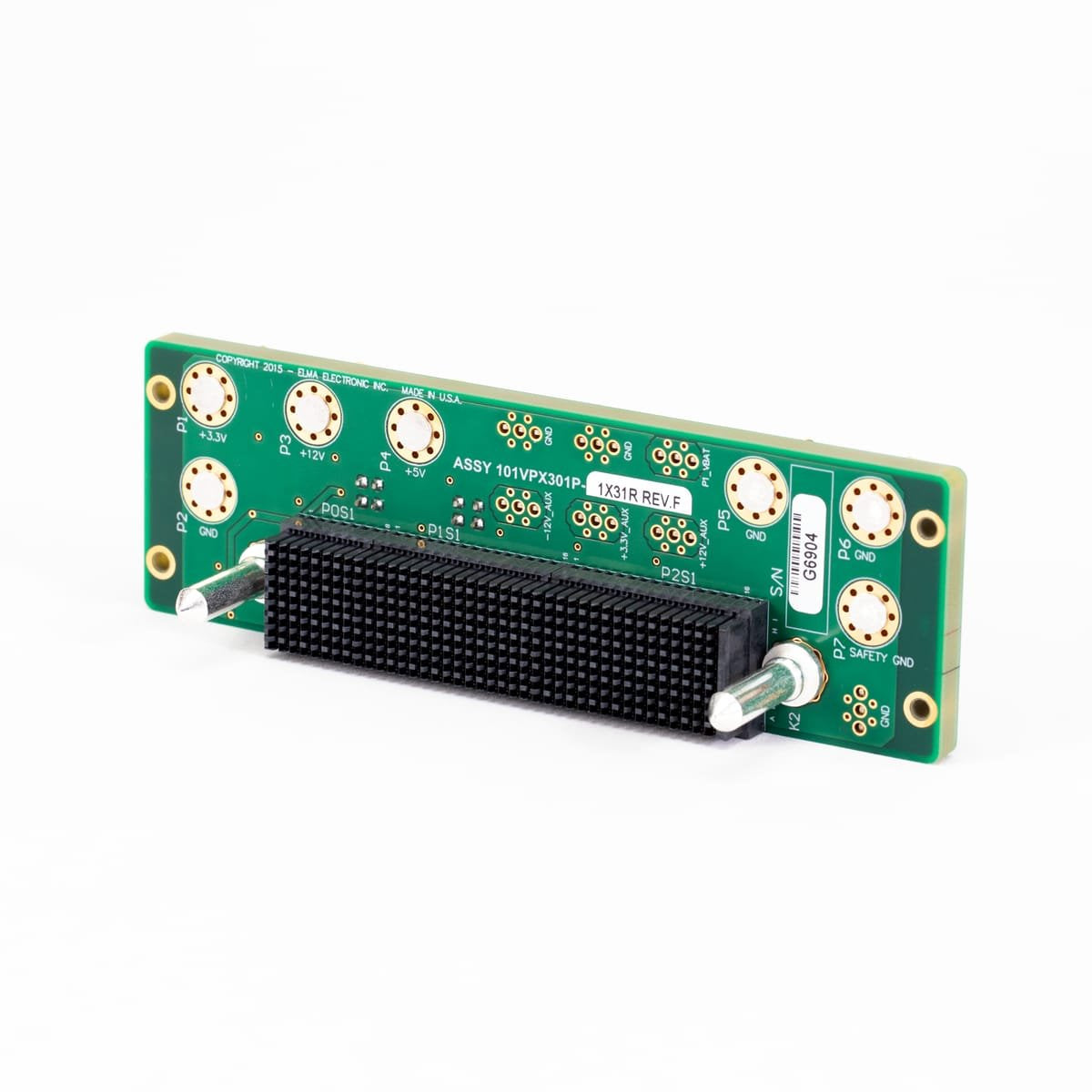

xThe 3U VPX 1-Slot Power & Ground backplane is a development-focused solution for OpenVPX systems requiring stable power and ground distribution. With support for essential voltages (3.3V, 5V, 12V) and fully populated rear connectors, this backplane simplifies system prototyping and integration. It’s designed to work seamlessly with Elma’s slot-to-slot and slot-to-I/O bulkhead cable products, offering a cost-effective foundation for embedded system development or evaluation.
Product Features
x- Compliant to the latest VITA 46 / 65 specifications
- Versions available support VITA 66 (fiber optic) and VITA 67 (RF) modules
- Power and ground only backplane for simple and low-cost development
- 3.3V, 5V, and 12V power
- P1- P6 pins are user-defined
- Backplanes have the utility plane implemented in P0 and P1
- NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
Product Information
xItem/Part Number101VPX301P-1X31R
Item Description3U VPX 1 Slot Power & Ground
ArchitectureVPX/OpenVPX
Slots1
