Description

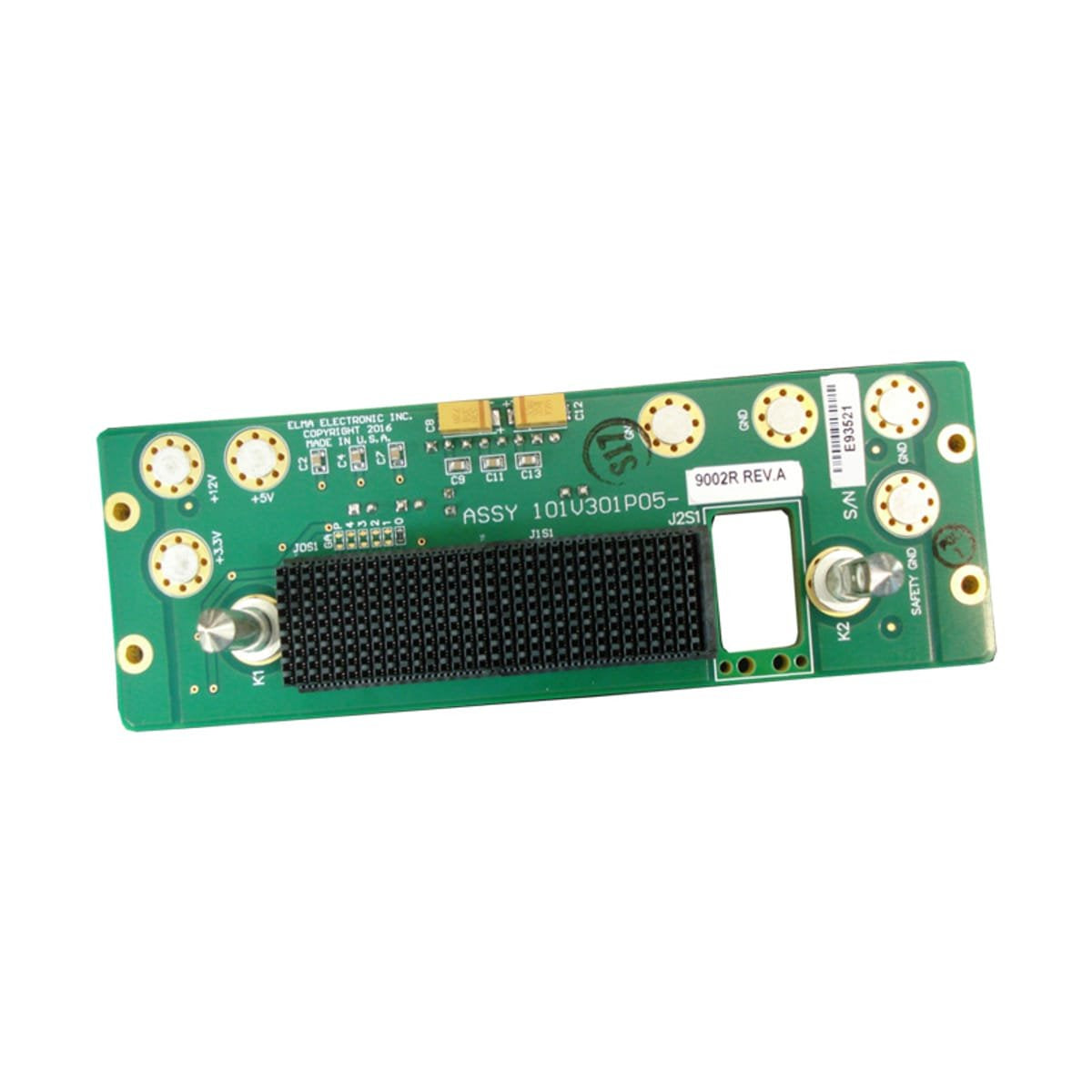

xA specialized development backplane featuring a VITA 67.3D aperture for high-speed RF and optical module integration. Designed to provide a stable power foundation (3.3V, 5V, 12V), it allows engineers to test PICs (Plug-In Cards) requiring sophisticated I/O through the J2 position. The precision-milled aperture is optimized for modular RF/optical connectors used in SOSA-aligned systems.
Product Features
x- Compliant to the latest VITA 46 / 65 specifications
- Versions available support VITA 66 (fiber optic) and VITA 67 (RF) modules
- Power and ground only backplane for simple and low-cost development
- 3.3V, 5V, and 12V power
- P1- P6 pins are user-defined
- Backplanes have the utility plane implemented in P0 and P18
- NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
Product Information
xItem/Part Number101V301P05-9002R
Item Description3U VPX 1 Slot Power & Ground with options for VITA 67.3D aperture
ArchitectureVPX/OpenVPX
Slots1
