Description

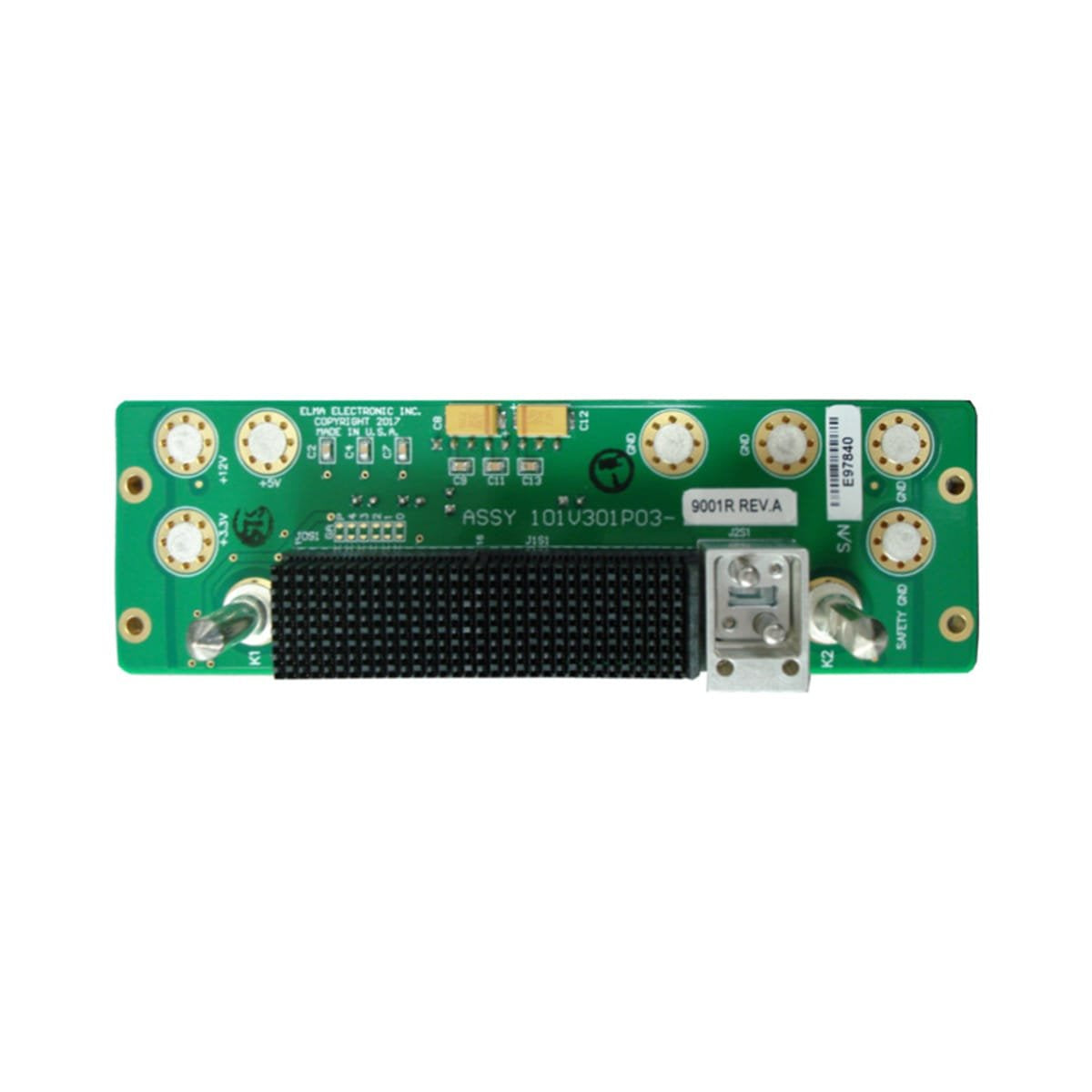

xThis 1-slot development backplane comes pre-configured with a VITA 66.4 optical aperture and a TE 2226800-1 connector installed in the J2B position. It is specifically built for high-speed data rate testing (up to 3.125G), providing a "plug-and-play" environment for fiber optic modules in rugged defense and surveillance applications.
Product Features
x- Compliant to the latest VITA 46 / 65 specifications
- Versions available support VITA 66 (fiber optic) and VITA 67 (RF) modules
- Power and ground only backplane for simple and low-cost development
- 3.3V, 5V, and 12V power
- P1- P6 pins are user-defined
- Backplanes have the utility plane implemented in P0 and P12
- NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
Product Information
xItem/Part Number101V301P03-9001R
Item Description3U VPX 1 Slot Power & Ground with VITA 66.4 Aperture and Connector TE 2226800-1 installed in J2B, 3.125G
ArchitectureVPX/OpenVPX
Slots1
