Description
xThis high-performance variant is designed for next-generation data rates, supporting up to 25G per lane (100G Fat Pipe). It is ideal for testing high-bandwidth signal processing cards in SOSA-aligned environments, featuring fully loaded rear connectors for seamless integration with Elma’s cabling products.
Product Features
x- Compliant to the latest VITA 46 / 65 specifications
- Versions available support VITA 66 (fiber optic) and VITA 67 (RF) modules
- Power and ground only backplane for simple and low-cost development
- 3.3V, 5V, and 12V power
- P1- P6 pins are user-defined
- Backplanes have the utility plane implemented in P0 and P22
- NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
Product Information

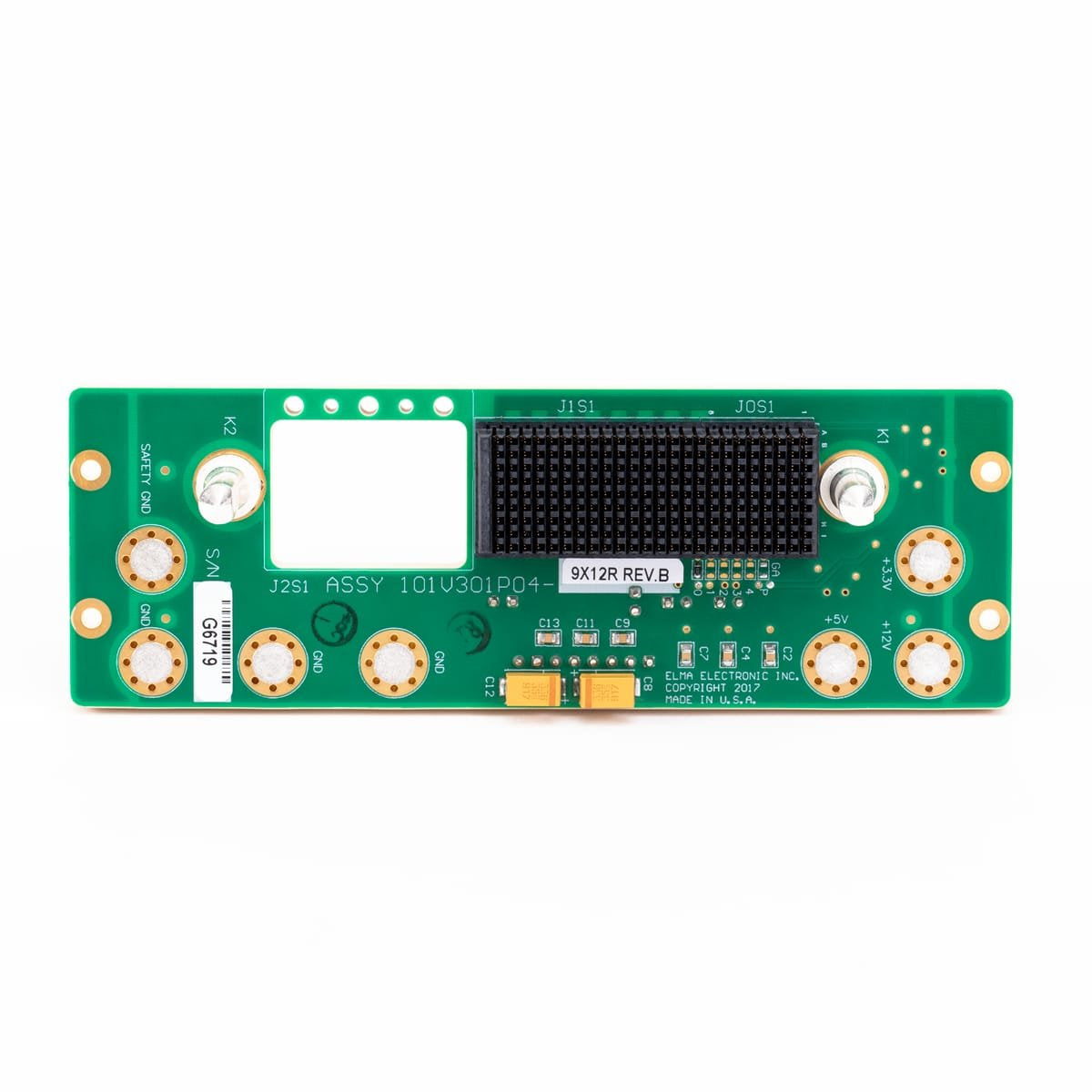

xItem/Part Number101V301P04-9X13
Item Description3U VPX 1 Slot Power & Ground with VITA 67.3C Aperture, 25G
ArchitectureVPX/OpenVPX
Slots1
