Description

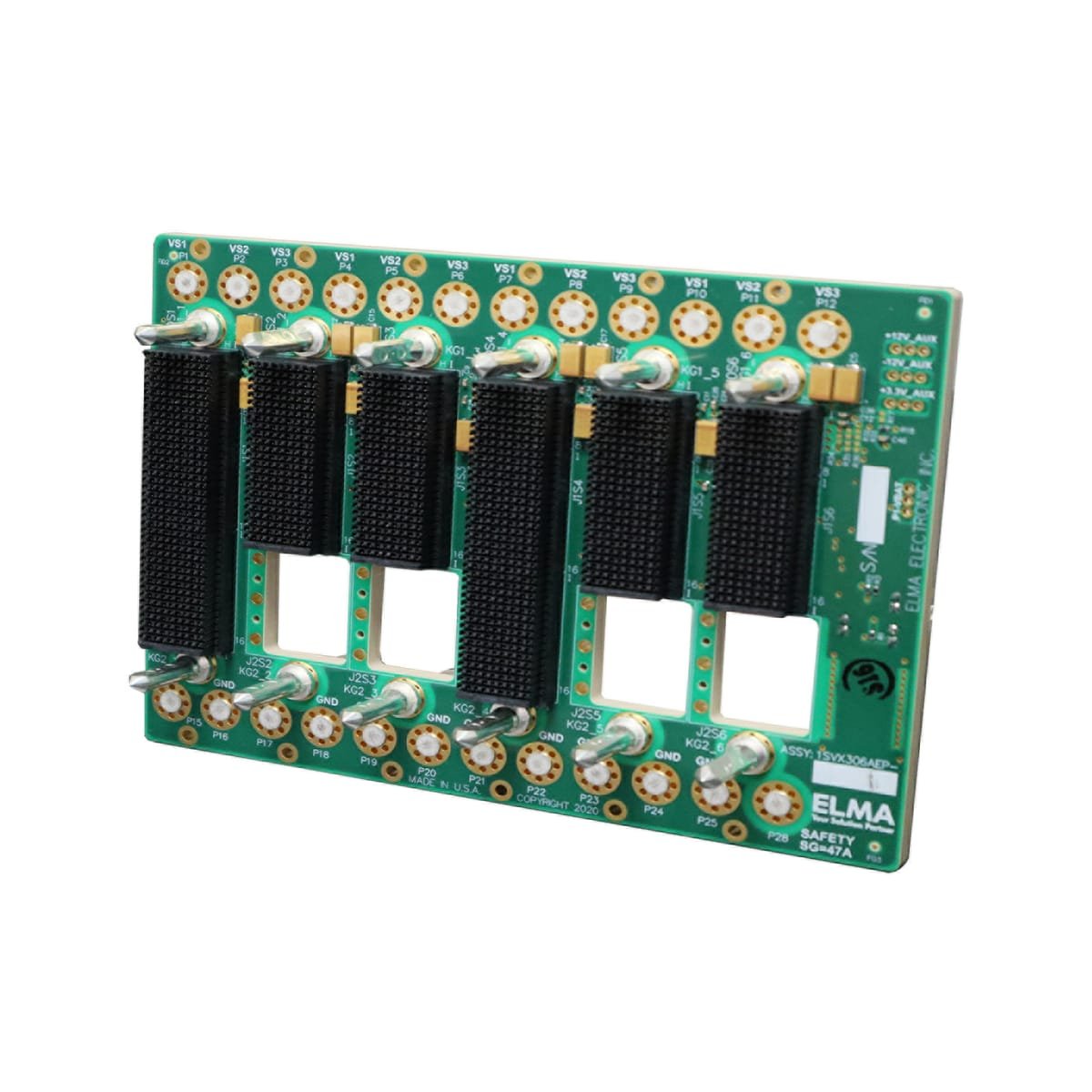

xDesigned in alignment SOSA, this 3U backplane offers 6 PIC (Plug in Card) slots supporting high-speed signals on all data paths and VITA 67.3 connectors and VITA 66.5 optical connectors. Backplane Variants are: 1SVX306AKP-1X31, 1SVX306AEP-1X31(R)*, 1SVX306AEP-9001(R), 1SVX306AEP-9002(R)*, 1SVX306ACP-1X31(R)*, SVX306ACP-9001(R)*, 1SVX306ACP-9002(R)*,1SVX306ASP-1X31(R)*
Product Features
x- Slot profiles in alignment with Snapshot 3 of the SOSA technical standard
- Six SOSA PIC slot 3U VPX backplane
- Supports dual domain Ethernet switch 1/10/40 & 25/100
- PNT Timing slot profile SLT3x-TIM-2S1U22S1U2U1H-14.9.2
- Routed Expansion plane links support PCIe Gen 4 data rates
- All control and data plane links are designed for 25 Gbps data rates and support 100GBASE-KR4
- Maintenance serial ports routed to one header
- Matched length, low skew REF and AUX radial clocks
- IPMC header for external chassis manager
- Backplane Variants are: 1SVX306AKP-1X31, 1SVX306AEP-1X31(R)*, 1SVX306AEP-9001(R), 1SVX306AEP-9002(R)*, 1SVX306ACP-1X31(R)*, SVX306ACP-9001(R)*, 1SVX306ACP-9002(R)*,1SVX306ASP-1X31(R)*
Product Information
xItem/Part Number1SVX306AxP-xxxx
Item Description6-slot 3U OpenVPX backplane aligned to SOSA, 25Gbps, apertures for VITA 66/67 modules
ArchitectureVPX/OpenVPX and SOSA
Slots6
