Description

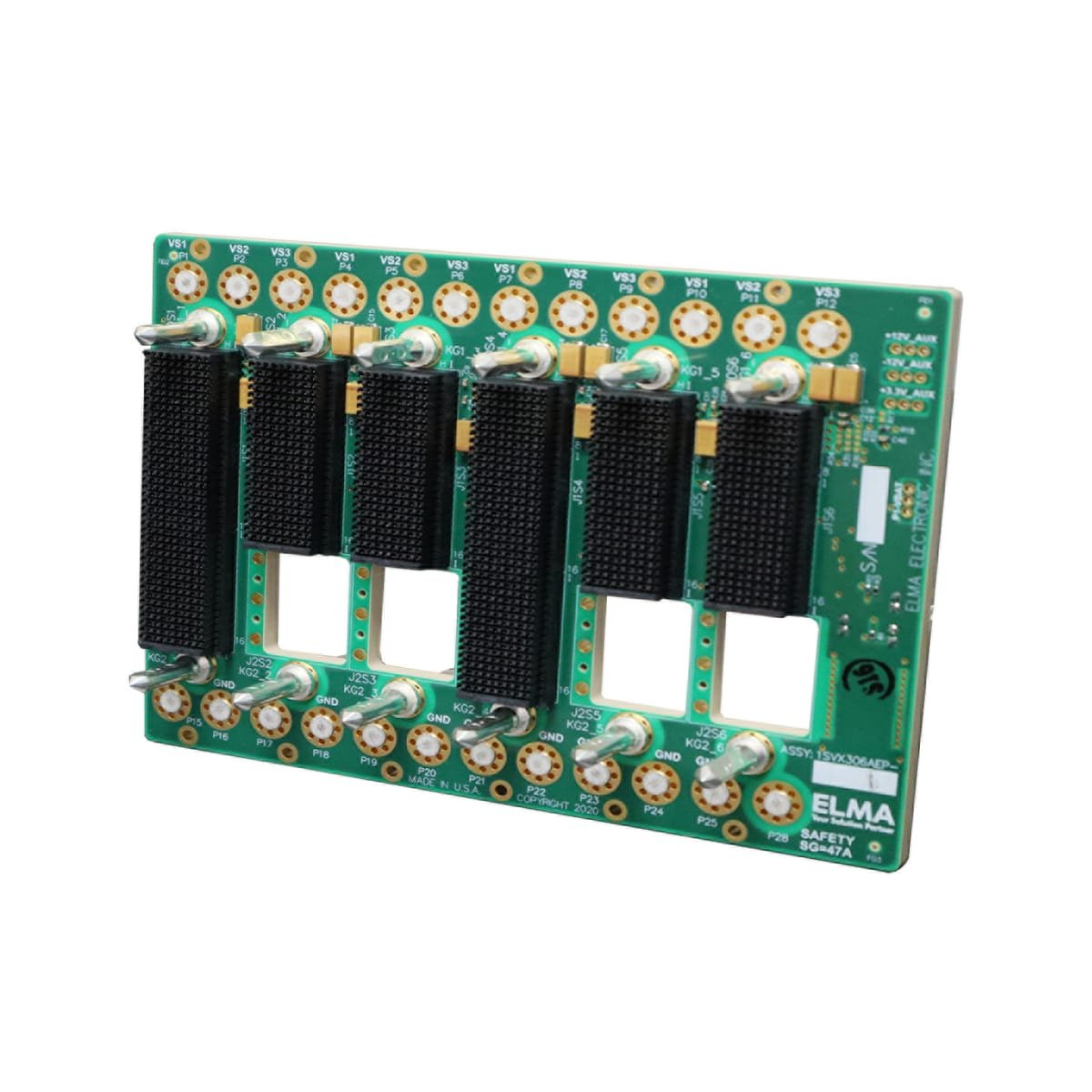

x6-slots 25Gb backplane aligned to SOSA, with VITA 67.3D aperture in switch slot, with apertures for VITA 66/67 modules
Product Features
x- Slot profiles in alignment with Snapshot 3 of the SOSA technical standard
- Six SOSA PIC slot 3U VPX backplane
- Supports dual domain Ethernet switch 1/10/40 & 25/100
- PNT Timing slot profile SLT3x-TIM-2S1U22S1U2U1H-14.9.2
- Routed Expansion plane links support PCIe Gen 4 data rates
- All control and data plane links are designed for 25 Gbps data rates and support 100GBASE-KR4
- Maintenance serial ports routed to one header
- Matched length, low skew REF and AUX radial clocks
- IPMC header for external chassis manager
- Power studs
Product Information
xItem/Part Number1SVX306ACP-1X31
Item Description6-slots 25Gb backplane aligned to SOSA, with VITA 67.3D aperture in switch slot, with apertures for VITA 66/67 modules
ArchitectureVPX/OpenVPX and SOSA
Slots6
