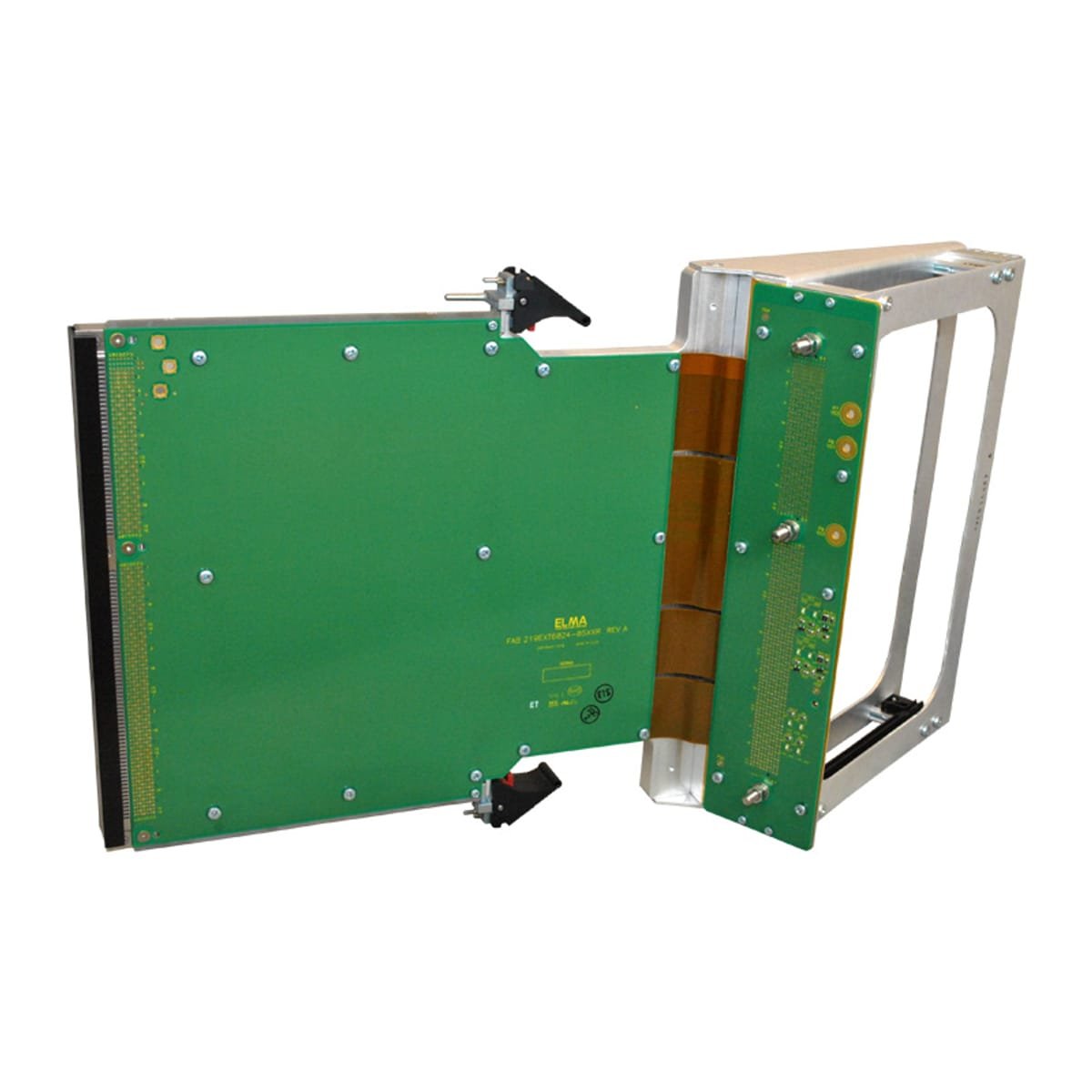

6U VPX Extender - P0 Utility, P1 - P6 Differential - Conduction Cooled

Item/Part Number: 119EXT6024-25XXR
Request Information
Description
Description
x

OpenVPX Extender 6U - P0 Utility, P1 To P6 Differential

Product Features
Product Features
x
  • Controlled impedance rigid-flex-rigid design
  • Alignment keying headers provided for extender and plug-in card
  • 100 Ohm differential pair routing
  • Mechanical frame supports 6U, 160mm plug-in card
  • Frame has injector/ejector latches for plug-in card
  • Signal rate: 3.125 Gb/sec
  • +5V on/off switch
  • Current monitor on +5V power
  • Frame has injector/ejector latches to hold extender securely to chassis
Product Information
Product Information
x
Item/Part Number119EXT6024-25XXR
Item Description6U VPX Extender - P0 Utility, P1 - P6 Differential - Conduction Cooled
ArchitectureVPX/OpenVPX
Datasheets and Media
Datasheets and Media
x

Technical Guide:

OpenVPX Backplanes Technical Reference Guide

Other:

Accessories Interactive Chart Accessories VPX
