Description
xPower for 3.3V, 5V and 12V, rear connectors fully loaded. Use with Elma’s slot-to-slot or slot-to-I/O bulkhead cable products for system development.
Product Features
x- Compliant to VITA 46 mechanical and power specifications
- Versions available support VITA 66 (fiber optic) and VITA 67 (RF) modules
- Power and ground only backplane for simple and low-cost development
- 3.3V, 5V, and 12V power
- P1- P6 pins are user-defined
- Backplanes have the utility plane implemented in P0 and P1
- NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
Product Information
xItem/Part Number1900002558-9001R

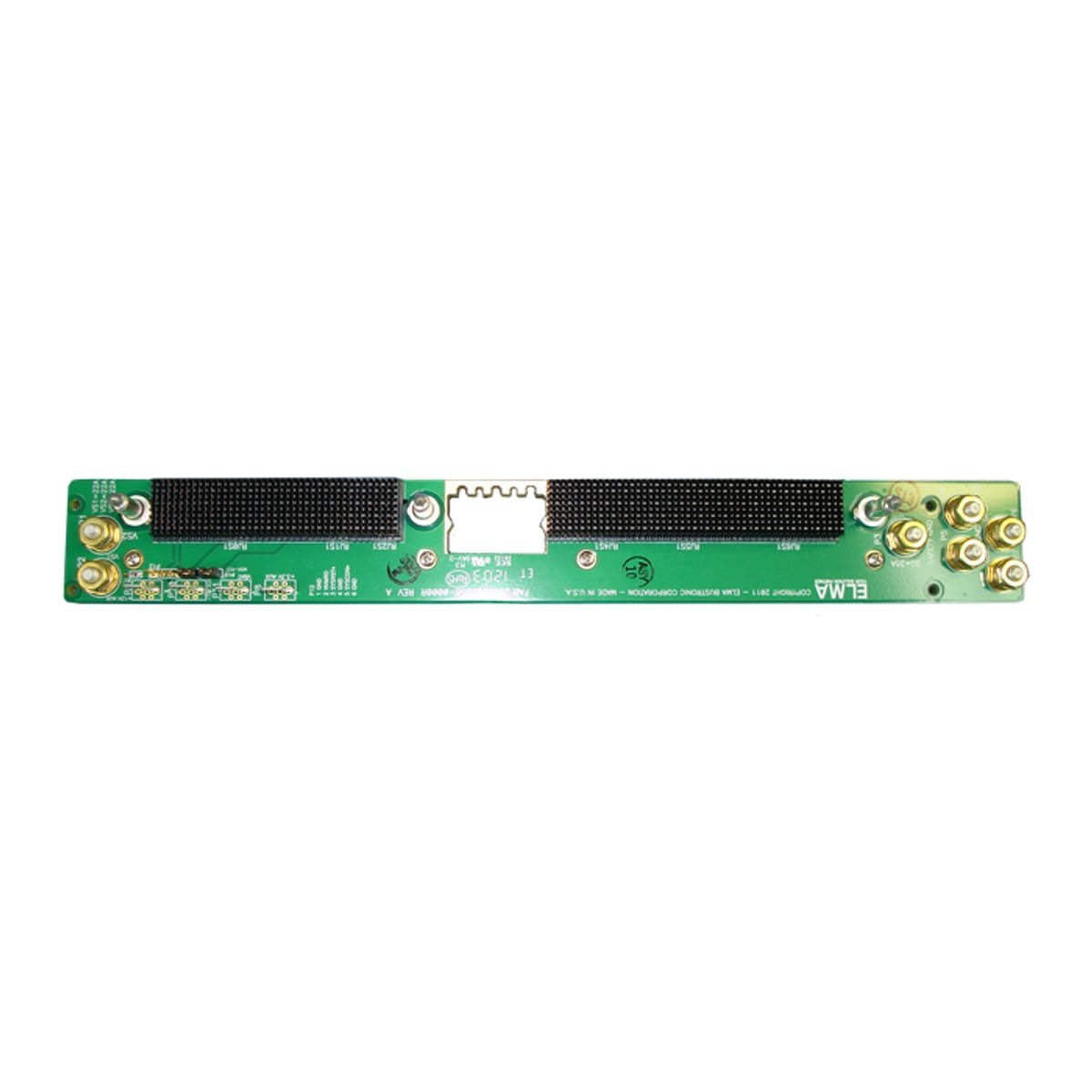

Item Description7U VPX 6-Slot Power & Ground with VITA 67 Aperture with 1 RF 8 position in J3
ArchitectureVPX/OpenVPX
Slots1
