Description

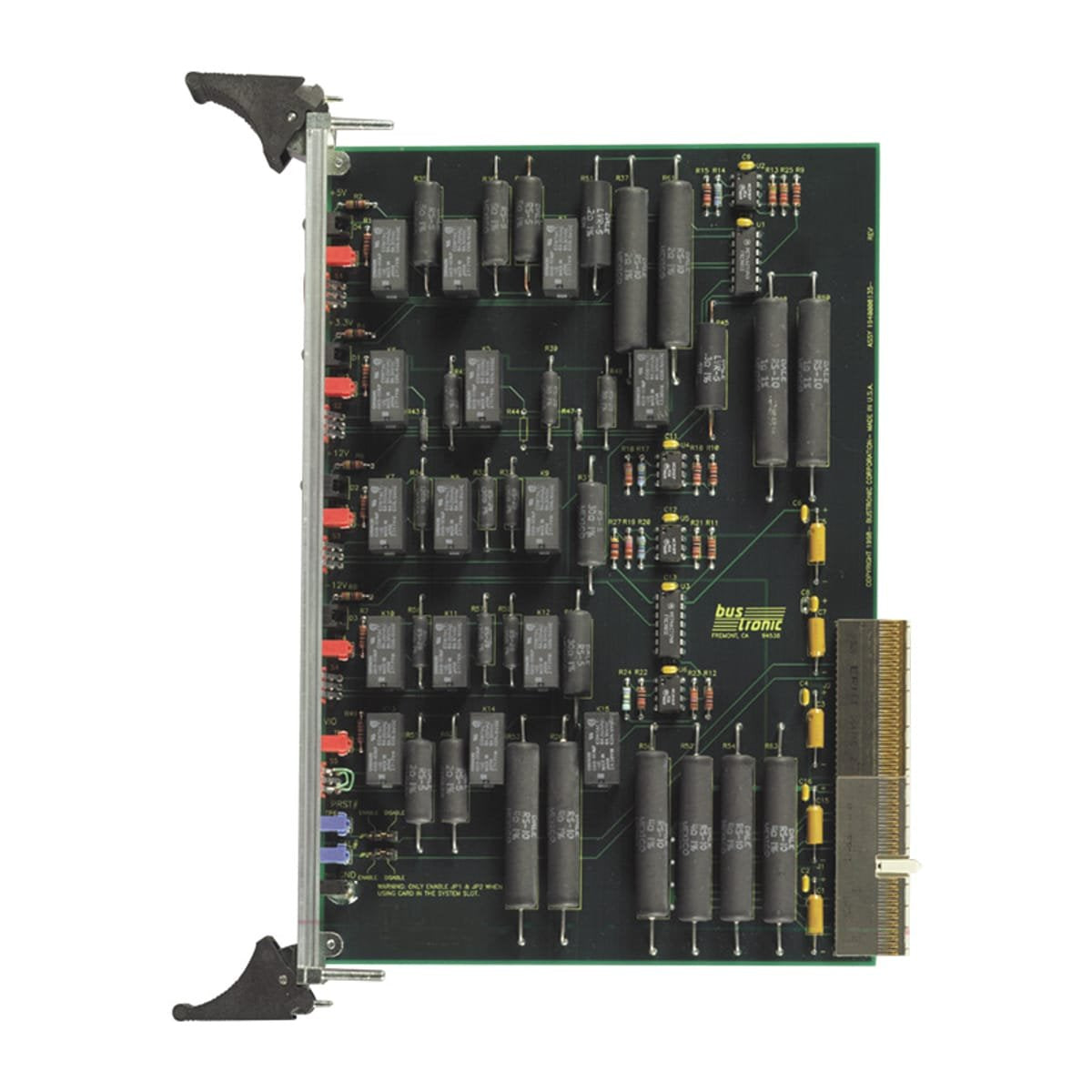

xThe 6U cPCI Load Board functions to test a system's cooling capabilities by first applying the load to the power supply for verification and finally creating the necessary heat to confirm chassis cooling.
Product Features
x- Conforms to mechanical and electrical connections of PICMG basic specification 2.0 R3.0
- Useful for system thermal and power characterizations
- Aids in locating hot spots in the chassis
- Visual GO-NO-GO indicators for each voltage, indicating +/-5% of nominal
- Primary voltage test points are V I/O, PRST#, FAIL#, and GND
- Power supply loading varied with binary switches in front panel
Product Information
xItem/Part Number1940000135-0000
Item DescriptionCPCI Load Boards 6Ux160mm
ArchitectureCPCI
Datasheets and Media
xDatasheet:
