Chassis Platforms

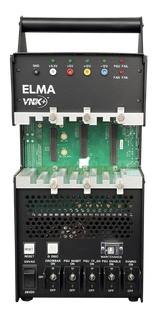

FlexVNX+ Test and Development Platform Aligned to SOSA and VITA 90 Standards

Elma’s all-new FlexVNX+ Test and Development chassis is the next generation portable test platform designed to accelerate development and test of VNX+ plug-in cards (PICs) aligned to The Open Group® SOSA™ Technical Standard and VITA 90.
System Monitor 3 Gen (SysMon) Fix mounted

The SysMon 3 Gen is a platform-independent system monitoring unit which monitors- and, if necessary, controls - the internal parameters of a System Platform such as voltages, temperatures, digital inputs and fan speeds.
Rugged Deployable, Rackmountable Chassis for 3U Cards Aligned to SOSA or CPCI Serial

This unit is a rack-mountable, rugged deployable chassis for use in harsh environments. The chassis has been designed to provide modularity and flexibility to support the full design life cycle of a system from initial concept and lab development through to qualification and full...
Rugged deployable CMFF chassis aligned to SOSA™ with SAVE tray

CMOSS Modular Form Factor (CMFF) field-deployable chassis, with a tray compliant with the Standard A-Kit Envelope (SAVE). Includes a 7 slot 3U VPX backplane, chassis manager, and VITA 62 plug-in power supply. it is aligned with the SOSA™ Technical Standard and designed for C5ISR,...
25 W 11.4-36 VDC | 2 outputs | PSU PCI/104 SFF | conduction-cooled

This rugged isolated power supply is capable of supplying up to 25 W of power output across two (one 5 V and one 3.3 V) output for a range of sensitive defense applications as well as industrial applications. With conformal coating.
ATR-3600S - ½ ATR for deployable applications aligned to SOSA™

ATR-3600S is an off-the-shelf half-ATR specifically designed for deployable applications requiring alignment with the SOSA Technical Standard. This six-slot chassis is mission-ready to accept SOSA aligned plug-in cards (PICs) and VITA 62 power supplies and is an ideal way to rapidly integrate a deployable...
MORA Ready Development Platform: CompacFrame integrated with SOSA aligned PICs and Sciens Innovations helux Core RF tools

The MORA-Ready Development Platform (MRDP) simplifies the process of creating RF signal processing capabilities and accelerates integration of existing applications. Featuring Sciens Innovations helux™ Core powerful software tools to accelerate RF signal generation and system development.
Hall-Sensor Board with analog output

The Hall-Sensor Board is the right accessory for your system in combination with the Elma SysMon. It's possible to measure up to 4 currents and to monitor them with the Elma SysMon 3 Gen.
21 Slot VME64x 19" Rackmount Development Platform; Type 12 19" Rackmount Chassis

Elma's System 12V family of enclosures for VITA bus architectures (VME, VME64X, VPX and VXS) provide an industrial rugged, versatile platform. Can be configured by selecting the backplane, PSU, device modules and number of slots. Configure Your Solution
3U 12-Slot Development Platform Aligned to SOSA 1.0 and CMOSS

3U OpenVPX development platform aligned with SOSA 1.0. It supports both SOSA and CMOSS profiles. It includes: 2 I/O intensive SBC, 7 primary payload, 1 radial clock, 2 switch and 2 power. Includes VITA 67.3 RF and optical I/O modules.
Type 12R2, 9U, 19" Rackmount, COTS MIL-Rugged

The 9U, 12R2 is designed to meet the harsh environment of shipboard, airborne, and ground mobile applications per MIL-STDs. Shock-isolated versions attenuate 25G shock to the chassis to less than 10Gs at the card cage. Configure Your Solution
9-Slot, 3U cPCI Serial E-Frame

Taking a new board level product or system from concept to deliverable requires feature rich development and testing tools. Elma's 3U cPCI Serial test and development platform is the ideal environment for bringing your next project to fruition. Configure Your Solution
Type 39 CompacFrame Development Platform, 2 and 4 Slot 3U OpenVPX Aligned to SOSA

Elma’s CompacFrame is the next generation portable test platform designed to accelerate development and test of plug-in cards (PICs) aligned to the Open Group® SOSA™ Technical Standard. Accommodates up to 4-slot OpenVPX backplane.
700 W VITA62 PSU | conduction cooled | 6 U | 5 HP | DC

Designed to meet the requirements of VITA 62 for use in harsh environments. For use in DC systems, they are 6 U high by 5 HP (1-inch) wide modules with guide blocks, for use in conduction cooled VPX systems.
5 Slot VME64x Portable Tower Development Platform; Type 32 Tower Chassis

Elma Type 32V family of enclosures provide a lightweight, tower platform for packaging portable VITA System applications. Designed to VITA & IEEE . Systems can be configured with or without rear I/O card cage. Configure Your Solution
3U CompactPCI Serial Power Interface Board

Standalone Power-BP 3U 8HP to connect CPCI Serial power supplies to compactPCI Serial-BPs. The connection is made via cables.
LED Display for SysMon

LED Display accessory for System Monitor (SysMon) with 11 LEDs and push button to generate a SYSRESET# signal directly from the front of the system.
120 W | 15 - 36 VDC | 5 outputs | PSU PCI/104 for SFF

This rugged isolated power supply is capable of supplying up to 120 watts of power output for a range of sensitive defense applications as well as industrial applications.
VME Form Factor Extender, 6U, 60mm

The VME form factor extender 6U 60 mm allows to adapt boards for use in the same VMEbus system. It maintain the correct depth dimensions and allow the front panel to be aligned.
Chassis Rugged Slide Rail Size 5

Securely locked in extended position. The chassis/cabinet mounted slide rails are ultra rugged and hold significantly more weight and can withstand shock and vibration in harsh environments.
Chassis Rugged Slide Rail Size 7

Securely locked in extended position. The chassis/cabinet mounted slide rails are ultra rugged and hold significantly more weight and can withstand shock and vibration in harsh environments.
ATR Family

Elma's full line of convection cooled ATR (Air Transport Rack) enclosures offer a standardized, cost effective solution for VME, VME64x,cPCI, VXS, OpenVPX, and MicroTCA based applications. Configure Your Solution
Type 12R2, 5U, 19" Rackmount, MIL-Rugged, Horizontal

The 5U, 12R2 is designed to meet the harsh environments of shipboard, airborne, and ground mobile applications per MIL-STDs. Shock isolated versions are designed to attenuate 25G shock inputs to the chassis to less than 10Gs at the card cage. Configure Your Solution
ATR Tray 1 long

The ATR Tray is shock isolated to meet ARINC 404A via four mounting points. The trays are standardized so that any enclosure designed to meet the ARINC 404A specification will securely fit. Guide pins allow ease for blind-mating insertion. Configure Your Solution
L-Frame, CompactPCI Serial, 5 Slots, SSR, 6U, 32HP, 299mm

CompactPCI Serial System Type L-Frame with 5 Slots: 4x CompactPCI-S.0 Peripheral Slots and 1x CompactPCI-S.0. 1x 550W ATX, air-cooled with fan fix-mounted.Vertical backplanes and have a 160mm card cage in the front and a 80mm rear I/O.
6 Slot 4U CompactPCI 19" Rackmount Development Platform; Type 39 19" Rackmount Chassis

The Type 39C is an advanced generation of CompactPCI chassis for PICMG 2.0, 2.16, 2.17, and EXP.0 applications. IEEE 1101.10/11, 6U x 160mm CPCI cards from the front and 6U x 80mm I/O cards from the rear. Configure Your Solution
VITA, Type 11V, 19" Rackmount Family

Elma Type 11 family of enclosures, VITA System applications. Designed to IEEE 1101.10/.11, EMC shielding. 3U-9U cards mounted vertically or horizontally with custom sizes possible. Systems can be configured with or without rear I/O card cage. Configure Your Solution
Electronic Load Board 3U CPCI-S (air cooled)

The 3U load boards are designed to simulate the power consumption of a single board computer and other boards on the backplane.
Chassis Slide Rail Size 7.

Securely locked in extended position. The chassis/cabinet mounted slide rails are ultra rugged and hold significantly more weight and can withstand shock and vibration in harsh environments.
16 Slot VME64x 19" Rackmount Development Platform; Type 12 19" Rackmount Chassis

Elma's Type 12V System Platform family of enclosures for VITA architectures (VME, VME64X, VPX and VXS) provides a rugged, versatile platform. This configuration is based on a 16-slot VME64X backplane. Assembled and tested. Configure Your Solution
